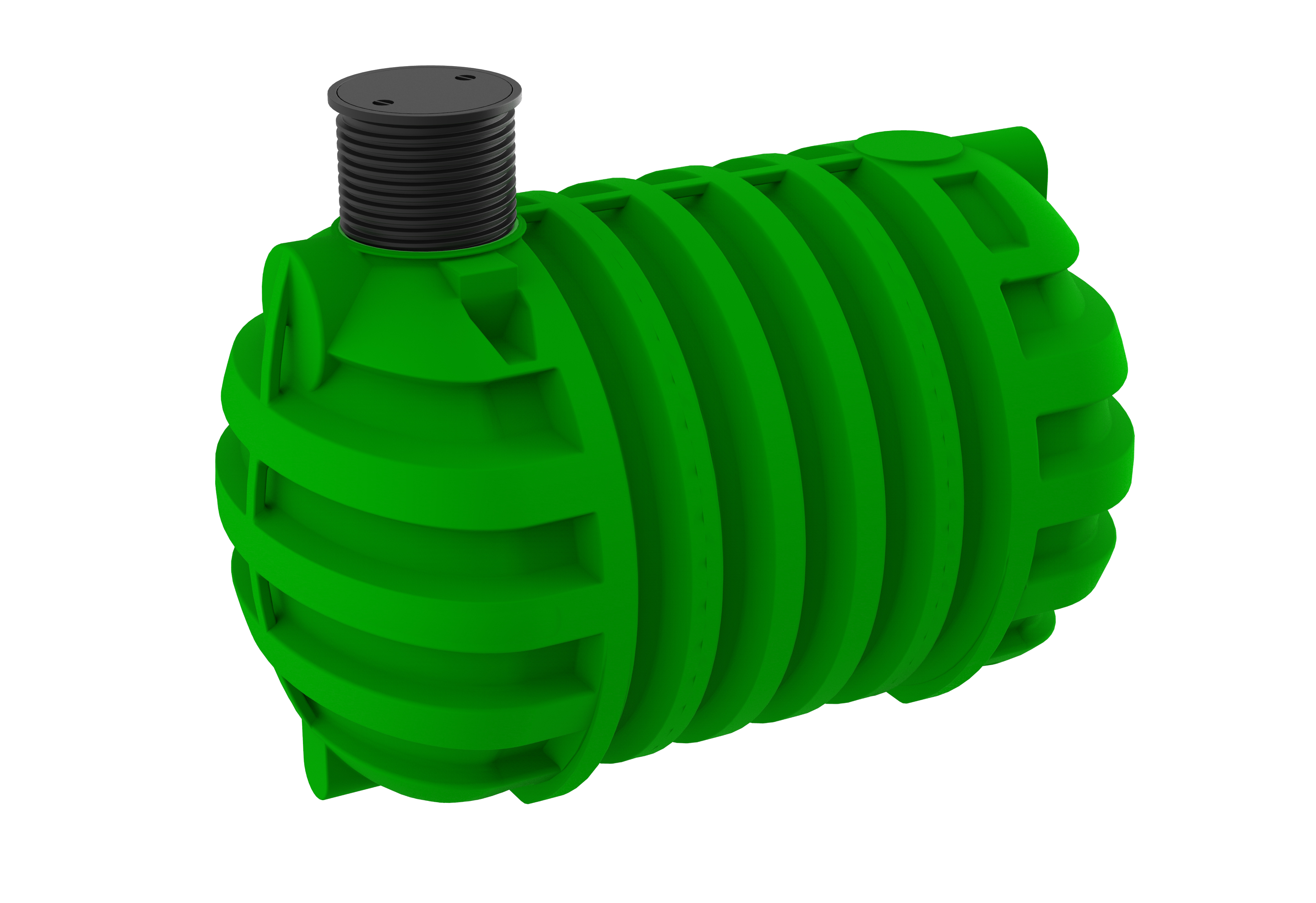

RoTerra tanks 8.000 – 18.000 L
Tank is easy to install, has excellent statics and can be buried underground.
Plastic cover has a seal which makes the tank waterproof. Cover is fixed with four staonless steel screws. Standard cover has loading capacity up to 0,2 kN/m2.
Inflow and outflow opening sizes are prepared according to customer requirements (1/2’’,3/4’’, 1’’, 2’’ for water distribution or PVC hoses from DN50 to DN 400 for influx, outflux and tank overflows).
Additiona equipment: seals, pumps, filters.
| VOLUME (L) | CODE | DIMENSION (MM) | WEIGHT (KG) | COVER (MM) | THICKNESS (MM) |
|---|---|---|---|---|---|
| 8.000 | 6254 | 2680 x 2310 x 2310 | 320 | 600 | 8-14 |
| 12.000 | 6250 | 3760 x 2310 x 2350 | 400 | 600 | 8-14 |
| 18.000 | – | 5200 x 2310 x 2350 | 650 | 600 | 8-14 |
Tehnični dokumenti
| Attachment | Size |
|---|---|
| 18000_skica.png | 22.2 KB |
| 12000_skica.png | 23.98 KB |
| 8000_skica.png | 25.9 KB |
| Roto.Garancijski.List_.Sample.2014.Rezervoarji.pdf | 48.4 KB |
